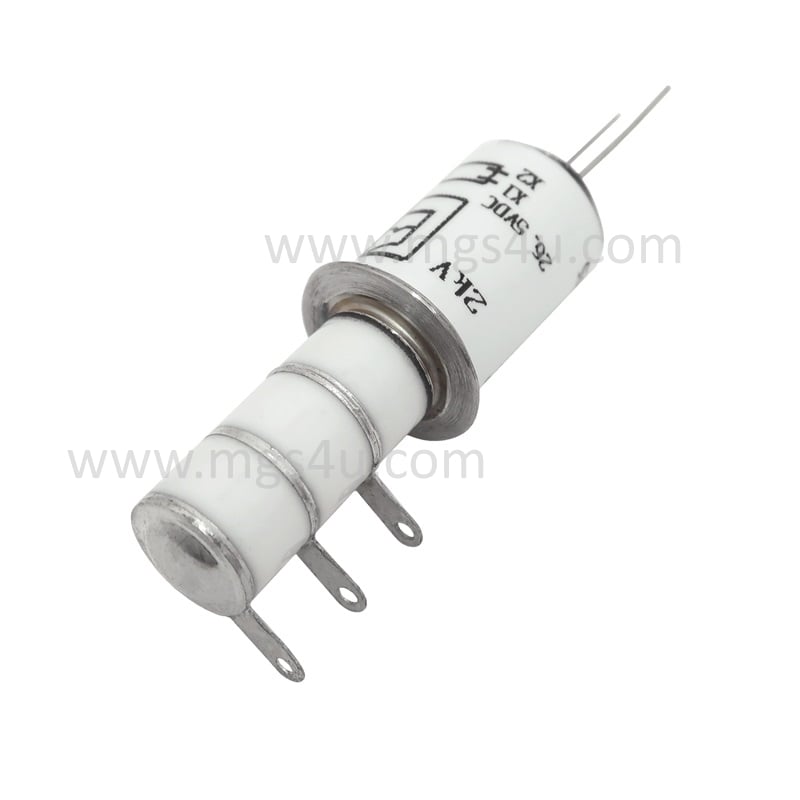

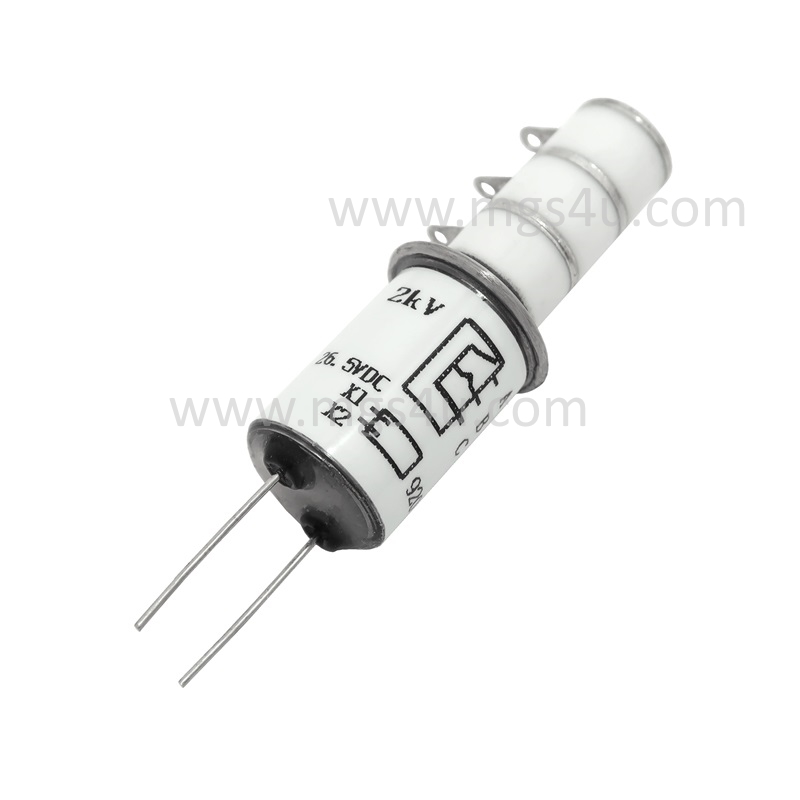

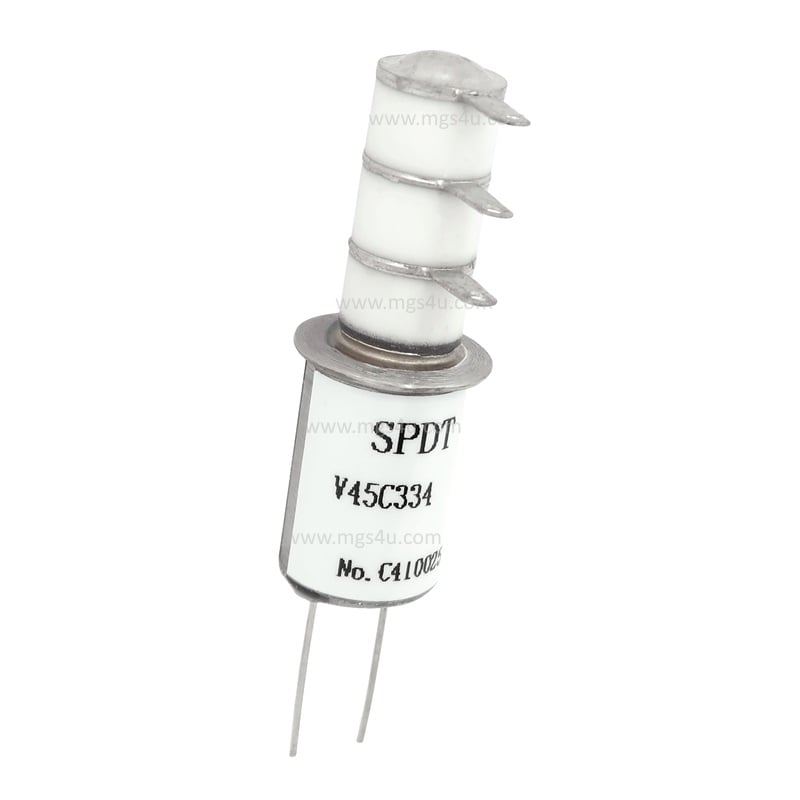

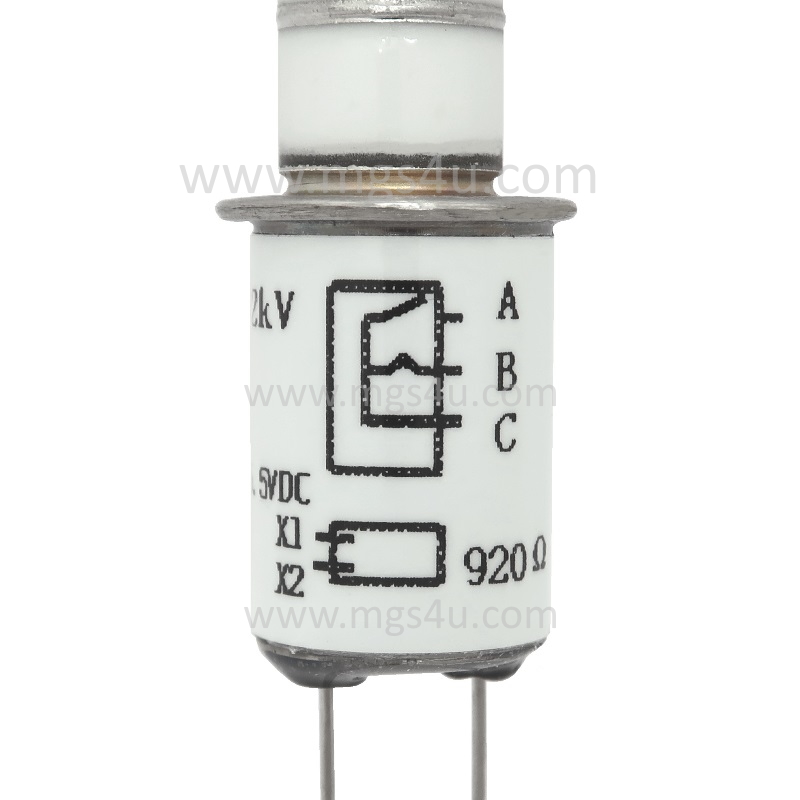

Greenstone V45C334 SPDT Vacuum Relay Military Specs MIL-R-83725 Peak Test Voltage 6 kV Peak Operating Voltage 5 kV Current Carry Amps (RMS) 20 amps @ 60 Hz Contact Close Speed 10 MS (Milliseconds) Contact Release Speed 10 MS (Milliseconds) Rated Life Operations 2,000,000 Important Dimensions Max Length 1.65 in / 42 mm Max Diameter 0.65 in / 16.50 mm Mounting Hole Diameter 0.55 in / 14 mm Weight 0.8 oz / 22 g   Mounting With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. See our article on mounting diaphragm type relays here: How to Mount Diaphragm/Stacked Vacuum Relays Condition Brand New, unused. Guaranteed good. Spec Sheet (Other variations of this relay are sometimes available, inquire) Greenstone Gigavac GL-Vac Jennings Kilovac V45C232 G45C232 GL45C232 K45C232 V45C234 G45C234 GL45C234 K45C234 V45C332 G45C332 GL45C332 RF1D-26S K45C332 V45C334 G45C334 GL45C334 RF1E-26S K45C334 V45C532 G45C532 GL45C532 K45C532 V45C534 G45C534 GL45C534 K45C534 V45C732 G45C732 GL45C732 K45C732 V45C734 G45C734 GL45C734 K45C734 V45C832 G45C832 GL45C832 K45C832 V45C834 G45C834 GL45C834 K45C834 V45C932 G45C932 GL45C932 K45C932 V45C934 G45C934 GL45C934 K45C934 Running LESS Power? Checkout the Greenstone VHC-1 Greenstone VHC-1 – NEW Running MORE Power? Checkout the Greenstone VC-2 Greenstone VC-2 – NEW All Single Pole Double Throw Vacuum Relays (SPDT) SPDT Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
