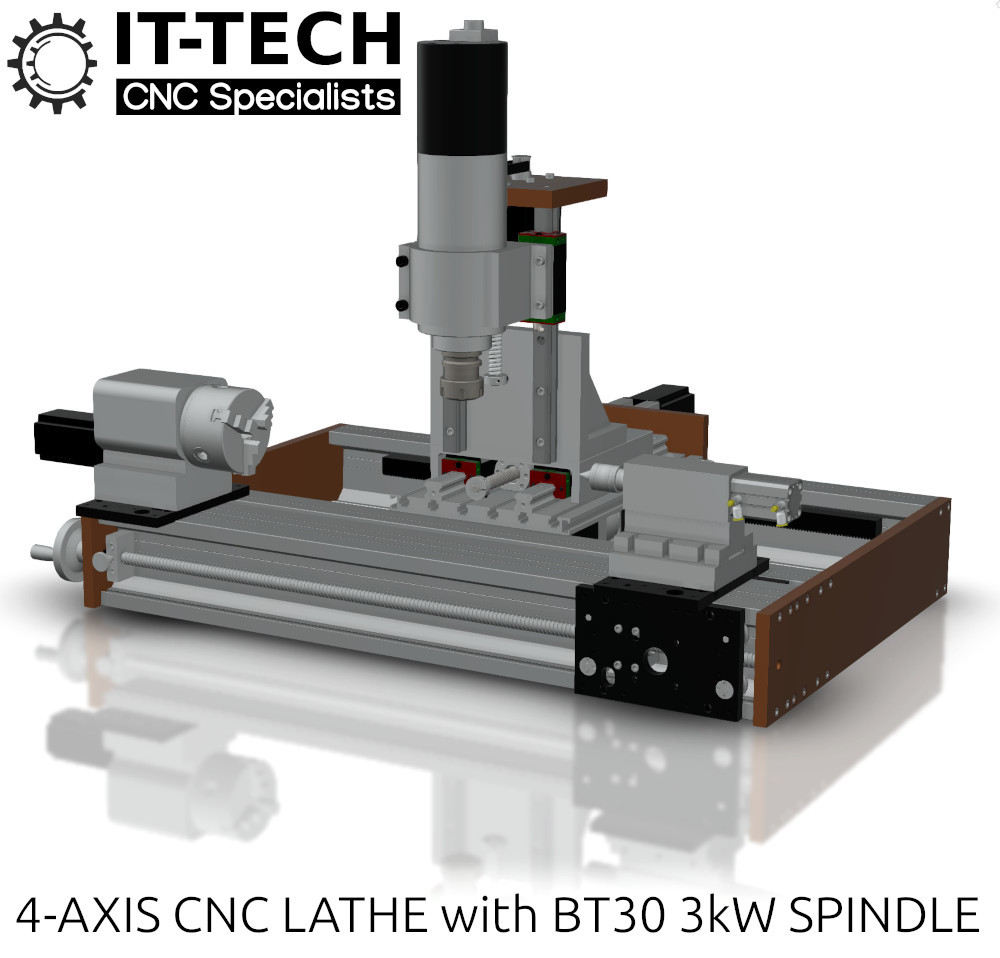

CNC 4-axis Lathe with BT30 3kW Spindle35.00৳
- Description CNC 4-axis Lathe with BT30 3kW Spindle Kit Introducing a robust CNC 4-axis Lathe, based on YS-52120 heavy duty linear actuators,designed to build stable and precision machinery . Originally built as custom made machine for client who needed an affordable alternative to the Schnitzer 4-axis CNC lathe while maintaining high performance. “This machine is available exclusively upon request. Please contact us for further information.” Key Features: Powerful Spindle: Equipped with a 3kW BT30 pneumatic quick-tool-release spindle capable of speeds up to 10,000 RPM Precision Movement: A 6N.m three phase stepper motor ensures accurate positioning of the 4-th axis K100 headstock, with rotational speeds up to 1.500 RPM. Pneumatic Tailstock: The tailstock features an SDA40 pneumatic cylinder for material clamping and unclamping, accommodating stock up to 430mm in length and 200mm in height. The stock length is adjustable using an SFU1605 ballscrew operated by a manual knob with locking mechanism. Sturdy Z-Axis: Built with a cast iron right-angle base, HGR30 heavy-duty linear rails, and HGH30HA long bearings for maximum stability and rigidity. Axis Control: X/Y/Z Axes: Driven by reliable 3.6N.m stepper motors. The X-axis offers rapid movement via two YS-52120 CNC helical rack-and-pinion actuators. The Y-axis utilizes an SFU1610 ballscrew and HGR25 steel rail for fast and accurate operation. The Z-axis employs an SFU1605 ballscrew for precise control. Proximity Sensors: Each axis is equipped with a limit/homing proximity sensor for reliable positioning. Customization Options: We also offer customization services to create larger lathes for extended material processing needs. Quick test of our lathe Main Components: 4 x YS-52120-850 CNC Heavy-Duty Actuators Two rack-and-pinion-driven One SFU1605 manually driven One free-movement actuator 3kW BT30 Spindle Motor Pneumatic quick tool release/change 10,000 RPM with VFD inverter K100 Headstock: Powered by a 6N.m torque Nema 34 three phase motor for precise or free movement up to 1,500 RPM (programmable via G-code). Pneumatic Tailstock: 50mm stroke Offline CNC Controller: 4-axis controller box with 10 inch touch screen For further information or customization inquiries, please contact us.
