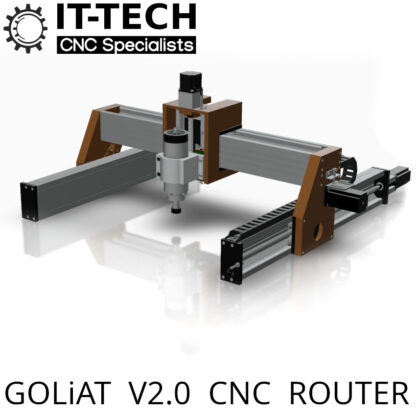

GOLiAT V2 CNC Router 660x1320mm35.00৳
- Description GOLiAT V2 CNC Router – 660x1320mm For Sale: High-Precision Mechanical CNC Kit (without spindle motor , without CNC controller) Meet the GOLiAT V2.0 — our new high-precision desktop CNC router, built for professionals and makers who need accurate, strong, and reliable performance. This mechanical kit is ideal for precise milling of wood, plastics, epoxy resin sheets, and soft metals. Precision Mechanical Design Assembled by our experienced team at our UK facility in Devon, this CNC router is built around high-quality YS-52120 linear actuators paired with SFU1610 high-speed ballscrews, delivering a milling accuracy of approximately ±0.02 mm. Custom GOLiAT V2 Linear Rail SystemDesigned for industrial-grade performance, our YS-52120 rail system features heavy-duty aluminium extrusions, steel guide rails, and SG25 steel rollers — significantly improving cutting stability and precision. The X-axis is made of two YS-52120 heavy-duty rails joined together to form an incredibly stiff X-axis bridge, which provides exceptional rigidity even under heavy loads and high feedrates. Redesigned Z-Axis for RigidityWe’ve re-engineered the entire Z-axis module to greatly increase structural stiffness, ensuring consistent cutting accuracy even under heavy loads or when machining harder materials. Stepper Motors and Controller Options Supplied as standard with Nema 23 stepper motors (3.6 N·m torque) — ideal for daily milling tasks. Upgrade Option: Closed-loop Nema 24 motors (4 N·m torque) available for more demanding applications. �� Contact us to discuss stepper motor upgrade options The GRBL-BOX32 all-in-one CNC controller box can be purchased from our online store. Custom made Offline, Standalone Controller Boxes (3, 4, 5 & 6 Axis)Say goodbye to expensive software subscriptions — we offer complete, plug-and-play controller solutions, fully offline, no need for Mach3 or other paid subscriptions.�� Contact us to discuss controller options. Spindle Motors – optional. As standard CNC is supplied without spindle motor Spindle Motor Options Available: 1.5kW Air-Cooled Spindle (400Hz VFD)(optional) �� Contact us to discuss spindle upgrade. Specifications: Speed Range: 6,000 to 24,000 RPM (regulated electronically) VFD inverter : 1.5 kW, 400 Hz inverter Chuck Type: ER11 spring chuck (accepts milling bits up to 8mm diameter)(Supplied with a 6 mm collet spring as standard) Body: 80 mm diameter, durable aluminum housing Power: 1.5 kW Connection Cable: 3-meter cable with H20 plug(Optional: 5-meter double-shielded cable available for an extra charge) 2.2kW Air-Cooled Spindle (optional) �� Contact us to discuss spindle upgrade. 3.2kW BT30 Water-Cooled Spindle with quick tool change system(optional) �� Contact us to discuss spindle upgrade. Available Working Areas We manufacture the GOLiAT CNC router in three standard working area sizes: 660×660 mm 660×1320 mm 1320×1320 mm Z-axis travel: ~120 mm — ideal for materials up to 100 mm thick. Vibration Control & Structural Reinforcement The side gantry arms have been completely redesigned and increased in thickness from 15 mm to 35 mm, using bakelite, a material known for for its vibration-damping properties — resulting in a smoother finish and better cutting quality. Optional Rack & Pinion Drive (for larger models) Our 660×1310 mm and 1310×1310 mm or larger models are also available with a rack and pinion drive system, enabling cutting speeds of up to 15 meters per minute — ideal for high-efficiency production environments. Need a Custom Size? We also offer large-format machines at competitive pricing: 4×8 feet 5×10 feet Vacuum Table , T-groove clamping system, ATS(automatic tool change system) available on request�� Contact us for a custom quotation. Easy Assembly – Beginner Friendly The machine ships partially pre-assembled, with stepper motors and drag chains already installed.Only minimal setup is required — even CNC beginners will find assembly straightforward. GRBL-BOX32 Controller Box – 3-Axis CNC Control (Dual Y-Axis Support) – Optional The GRBL-X32 offline controller is a simple yet powerful solution for operating 3-axis CNC routers (including machines with dual Y-axis) via a PC’s USB port or wirelessly through Wi-Fi.Recommended control software: Universal G-code Sender (must be downloaded and installed separately). Specifications: Built-in control Interface: Offline 3.5 inch touch screen which allow usage of the controller without computer Motor Drivers: TMC 2160 drivers — support for powerful NEMA stepper motors (up to 4.33 Amps per motor) Firmware: GRBL CNC firmware for ESP32C (pre-installed) Storage: microSD card slot support – 4GB card included Power Supply: Integrated 500W PSU Limit Switches: Supported Z-Axis Probe: Supported Spindle Control: Built-in power socket supporting up to 8Amps devices and M3/M5 G-code commands for spindle motor on/off control Connectivity: Wi-Fi support (operation via browser-based GUI), USB support(through UGS or Openbuilds Control control software) Included: Easy-mount plugs for XYZ axes (including dual Y-axis), limit switches, and probe �� Click here to learn more about the GRBL-X32 Controller Box. Limit/homing sensors – 3 x NPN NO proximity sensors provided(included) NPN Proximity Sensor 5V NO We install 3 x 5V proximity sensors as your limit/homing sensors on this CNC machine(included in the price) Quick speed test at 10 metres per minute rapid movement Goliat V2 CNC Router Speed Test Video will open in a new window [isdntekvideo] WHAT’S INCLUDED IN THE BOX? Pre-assembled parts of the CNC router with 80mm diameter spindle motor mount (spindle not included) Nema 23 stepper motors 3.6N.m Torque with 2 metre cables and drag chains 3 x proximity NO sensors with 1.2 metre cables, mounting screws, mounting brackets Tutorial links that shows how to assemble all pre-asssembled parts together will be provided after purchase Our machines are coming with 1 year of warranty for parts. We also offer post-warranty service/help for your customers SHIPPING We will need 3-5 working days to assemble and test the CNC kit before it is dispatched to the client , please note. Some assemble done by custmer is required, please note.
