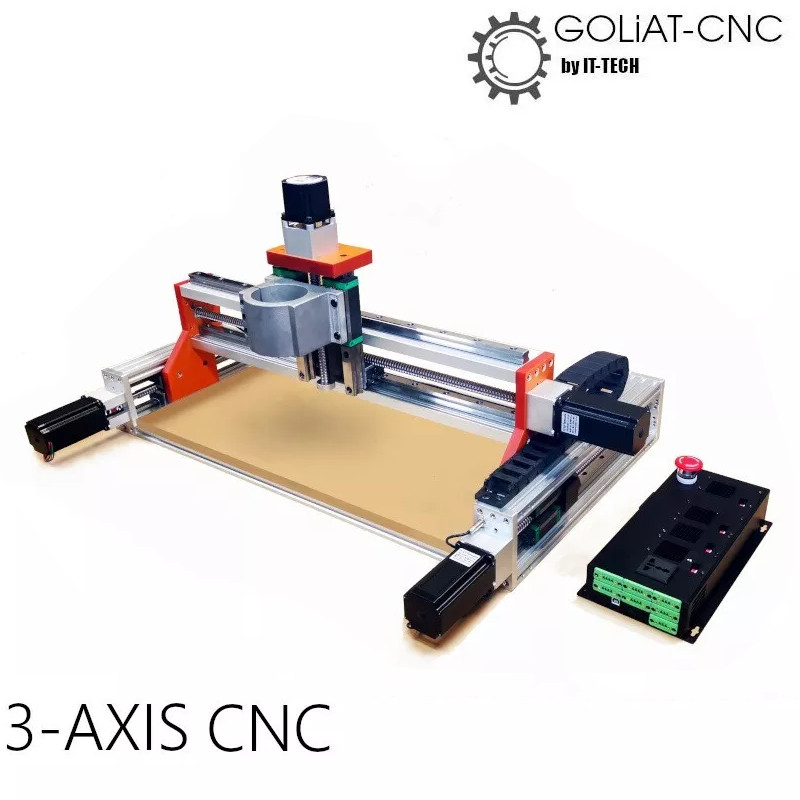

High-precision 3-axis ballscrew CNC mechanical kit
$ 97.21
- Description For Sale: High-Precision CNC Router mechanical kit 1500x1500mm This high-precision CNC router is ideal for accurate milling of materials such as wood, plastics, epoxy resin sheets, and soft metals.The machine is built around high-quality ballscrew linear actuators, offering milling accuracy of approximately ±0.05 mm. Our GOLiAT series is reinforced with hardened steel HGR rails, significantly enhancing cutting precision when engraving or milling various materials. The router will ship partially pre-assembled with and drag chains installed.Only minimal assembly is required — even beginners can easily complete it. The side gantry arms (in orange) are made from 15 mm thick high-strength Bakelite, a material with tensile strength comparable to aluminum sheets.Bakelite is not only exceptionally tough and rigid, but also much lighter than aluminum or steel, offering superior performance without the extra weight. CNC router contain static ballscrew with rotating ballnut on X-axis OPTIONAL ITEMS(can be found in our store): 1.5kW spindle motor 400Hz VFD Spindle Motor – 1.5kW, 80mm Diameter This 400Hz VFD spindle motor is designed to fit perfectly into the supplied 80 mm spindle mount.With its powerful 1.5 kW output, it is ideal for milling materials such as hardwood, acrylic, epoxy, and hard plastics. Specifications: Speed Range: 6,000 to 24,000 RPM (regulated electronically) Required VFD: 1.5 kW, 400 Hz inverter Chuck Type: ER11 spring chuck (accepts milling bits up to 7 mm diameter)(Supplied with a 6 mm collet spring as standard) Body: 80 mm diameter, durable aluminum housing Power: 1.5 kW Connection Cable: 3-meter cable with H20 plug(Optional: 5-meter double-shielded cable available for an extra charge) GRBL 3-axis controller box GRBL-X32 Controller Box – 3-Axis CNC Control (Dual Y-Axis Support) The GRBL-X32 offline controller is a simple yet powerful solution for operating 3-axis CNC routers (including machines with dual Y-axis) via a PC’s USB port or wirelessly through Wi-Fi.Recommended control software: Universal G-code Sender (must be downloaded and installed separately). Specifications: Built-in control Interface: Offline 3.5 inch touch screen which allow usage of the controller without computer Motor Drivers: TMC 2160 drivers — support for powerful NEMA stepper motors (up to 4.33 Amps per motor) Firmware: GRBL CNC firmware for ESP32C (pre-installed) Storage: microSD card slot support – 4GB card included Power Supply: Integrated 500W PSU Limit Switches: Supported Z-Axis Probe: Supported Spindle Control: Built-in power socket supporting M3/M5 G-code commands for spindle motor on/off control Connectivity: Wi-Fi support (operation via browser-based GUI), USB support(through UGS or Openbuilds Control controlsoftware) Included: Easy-mount plugs for XYZ axes (including dual Y-axis), limit switches, and probe �� Click here to learn more about the GRBL-X32 Controller Box. NPN Proximity Sensor 5V NO We can install 3 x 5V proximity sensors as your limit/homing sensors on this CNC machine. Please find them in our shop and add to your shipping basket list. We will make sure to install them for you on the machine ( standard X/Y/Z zero/home coordinates are located at front/left/top of the machine). Pleas emake sure that you choose 5V provimity sensors, standard 6-36V proximity sensors will not work with our GRBL controller box Here is short test of the router, showing how it cut in hard bakelite sheet: Precise router milling test. Video will open in a new window What’s Included in the Box? Pre-assembled parts of the CNC router without stepper motors (Note: GRBL controller box and spindle motor are optional equipment — please select the correct items from the available options if needed.) drag chains Mounting screws and brackets Important Notice:The motors , CNC controller, spoilboard and spoilboard frame shown in the photos are not included in the package. If you’d like a spoilboard frame made from 2040 V-slot extrusion, please feel free to reach out to us for more details.The spoilboard itself is crafted from 18mm thick MDF, which is readily available at most building supply stores. SHIPPING We will need 10 working days to assemble and test the CNC machine before it is dispatched to the client , please note.
