New 6040-MGN CNC Router Mechanical Kit35.00৳

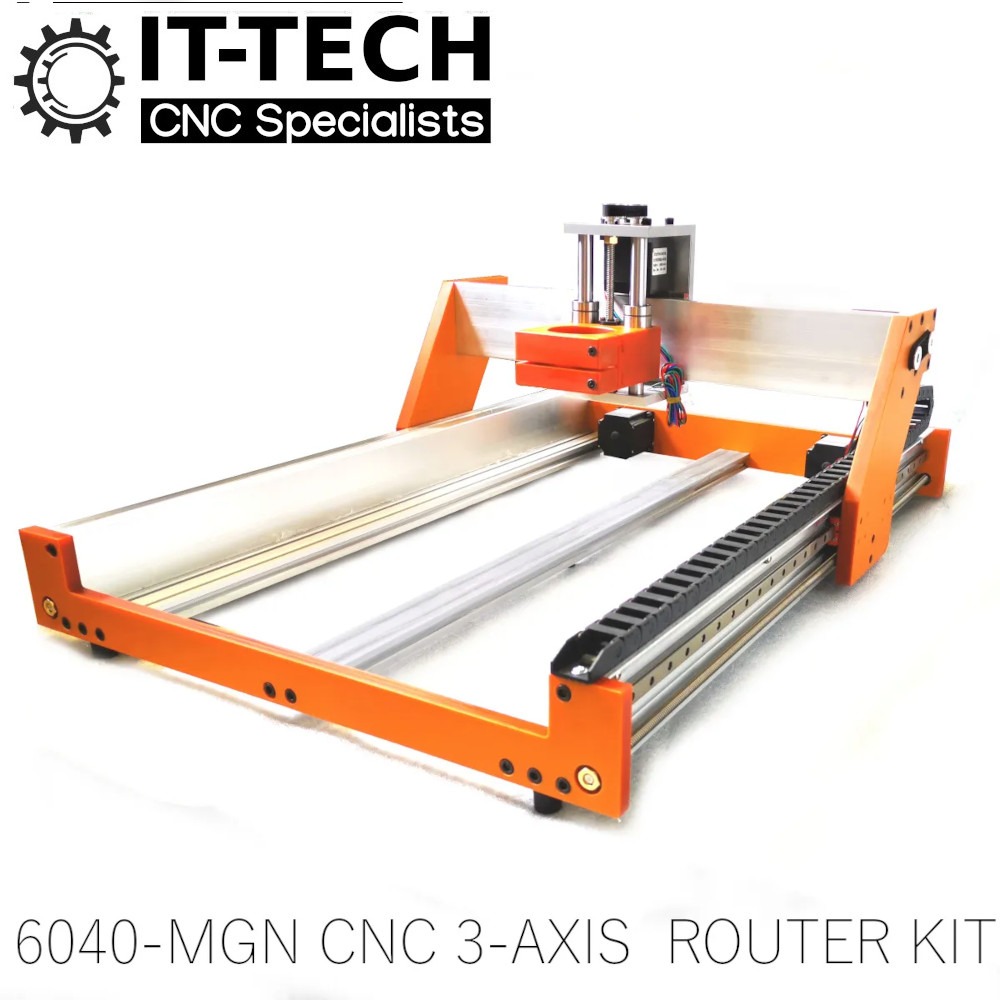

- Description 6040-MGN CNC Router Mechanical Kit “This CNC machinery has been discontinued and is available by special request only. Please note.” For sale a new “MGN” line of CNC desktop routers, suitable for engraving/milling in such materials as: wood, plastics, epoxy resin sheets, soft metals. It is a variation of a 6040 CNC router which contains 4x Nema 23 motors( 2 x motors for Y-axis). Two motors for Y-axis provide better, more stable and stronger movement. This build is based on decent MGN12H bearings and MGN12 hardened steel rails and 2080 extrusion profiles. It provides much more stability and accuracy than builds based on Openbuilds Delrin wheels or Chinese construction CNC routers based on SCS or SBR ball bearings. The Z-Axis module contains Japanese high quality LM16LUU linear bushings. Our 6040-MGN CNC Router Mechanical Kit is reinforced with hardened steel MGN12 rails, which significantly increase the accuracy of cutting in engraved or milling materials. We sell pre-assembled mechanical parts machines with stepper motors & drag chains. However some assembly is required. Gantry side bridge arms and front/back plates of the router are made of hard bakelite which has tensile strength comparable to aluminium gantry arms of same thickness. It is also much lighter than aluminium. Thanks to that, our machine kit weighs just about 18kg. It is also easy to assemble and disassemble and will fit easily on a mid-size desk. Also, we made a great effort to design a machine where rails and transmission screws will be as much as possible separated from the working area, so dust and chips will not gather on rail and screws. It will increase the life of moving components( bearing slide blocks, anti backlash nuts). 6040-MGN is a perfect tool to start your CNC milling journey. PLEASE NOTE!!! Price do not include controller/driver board or 65mm palm router. Suitable GRBL controller box and a 65mm palm router can be found in our store. It is the buyer’s responsibility to check and tighten all screws, especially MGN rail M3 bolts, also machinery needs to be aligned and angles must be set with precise probing tools, to achieve a best milling accuracy. Do this, unscrew gantry bolts a little and set 90 degree angles, then tighten bolts back . OPTIONAL ITEMS(can be found in our store): 65mm palm router This palm router will fit in the supplied 65mm spindle mount provided. Power for the router is sufficient to successfully mill in materials like: hardwood, acrylic, epoxy, hard plastics Compatible with Makita/Katsu palm router. SPECIFICATION: palm router speed: regulated from 10.000 to 30.000 RPMs spring collet accept 6mm & 6.35mm(1/4″) milling bits 65mm diameter aluminium body, 710W power 1 x straight edge director wrench key for milling bits installation dust outlet 1 x adjustment GRBL 3-axis controller box Simple but mighty GRBL-X32 controller allows control of 3-axis CNC routers(dual y-axis) machines via PCs USB port(or wirelessly). Recommended Universal Gcode Sender software (must be downloaded ). SPECIFICATION: TMC 2160 drivers allow to connect more powerful Nema steppers, up to 4.33A per motor Grbl CNC Firmware for ESP32 firmware uploaded microSD card support 500W integrated PSU Limit switches support Z-axis probe support Built-in power socket supports M3/M5 G-code command for software controlled spindle motor power on/off function. WiFi connection support( operation via Website based GUI) XYZ Axis( dual Y-axis), limit switch and probe easy mounting plugs included. to read more about our GRBL X32 Box please visit: https://www.it-tech-uk.com/product/grbl-3-axis-controller-box/ Required MDF spoilboard size is 433x650mm(not provided, must be bought separately). 5mm diameter holes must be drilled in spoilboard and screwed into the aluminium v-slot profiles of CNC router by provided 9x pieces of M5x20mm bolts and t-nuts. Here is short surfacing test of the router at 1500mm/min feedrate: WHAT’S IN THE BOX? Pre-assembled mechanical parts of CNC Router Mechanical Kit with stepper motors,drag chains and stepper motor cables. We will need 3-5 working days to assemble and test the CNC machine before it is dispatched to the client , please note.
