C-Beam CNC X/Y Cross Table35.00৳

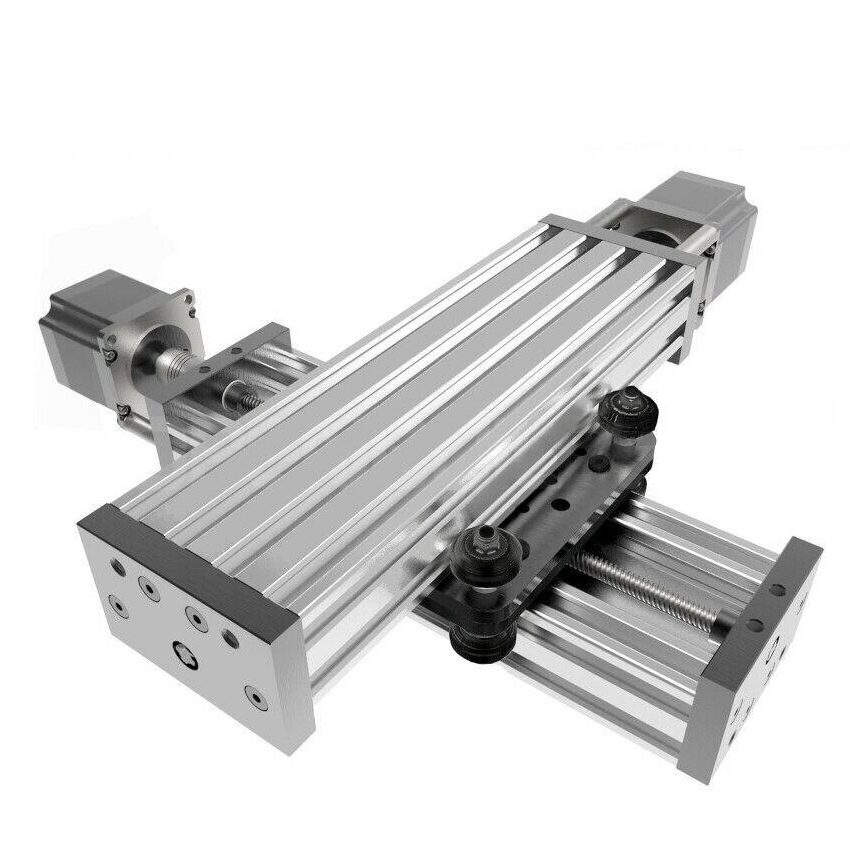

- Description C-Beam CNC X/Y Cross Table For sale X/Y system combines two powerful and accurate C-Beam XLarge Actuators providing an affordable X/Y Table that can also be used as a X/Y system for CNC machines/3D printers as well as many other applications. Lead screws used in our X/Y actuators are larger and faster than standard TR8x8 leadscrews. We are using TR10x10 leadscrews here. If needed, we can upgrade standard 1.26N.m. torque nema motors to stronger motors. If stronger motors are required, please contact us before purchase is made. Parts List: C-Beam aluminium rail: 2 pieces(choose length from drop down menu) XLarge C-Beam Gantry Plate: 2 pieces 10mm Acme Lead Screw: 2 pieces Anti-Backlash brass nut system: 4 pieces Nema Motor 175oz (1.26N.m.)torque: 2 pieces Delrin V wheels: 8 pieces Brass 10mm collars: 2 pieces 10x16x4mm ball bearings: 2 pieces 8x16x5mm ball bearings: 2 pieces 10×6.35 coupling: 2 pieces 20mm low profile M5 bolts: 16 pieces 12mm low profile M5 bolts: 8 pieces 25mm low profile M5 bolts: 8 pieces Xlarge Plate joining M5 bolts 12mm: 4 pieces 40mm aluminium motor mounting spacer: 4 pieces 55mm low profile motor mounting bolts: 4 pieces! Manual aluminium turning knobs: 2 pieces PLEASE NOTE! Gantry plate travel distance is about 138mm less than length of actuator given. WHAT’S IN THE BOX? Set of two XLarge plate actuators with Nema motors & screws
