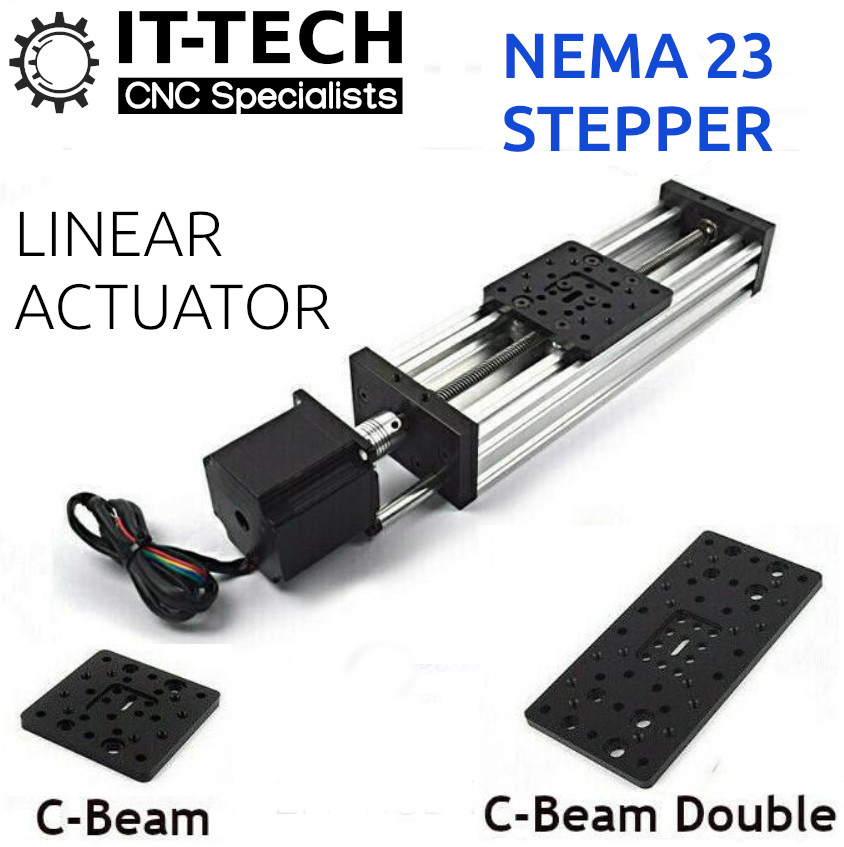

C-Beam Linear Actuator Kit with Nema 23 Motor35.00৳
- Description C-Beam Linear Actuator Kit For sale C-Beam Linear Actuator Kit with Nema stepper motor, which can be used to build various Openbuilds/Ox CNC/Plasma/Laser projects. We sell a various lengths actuators from 150mm to 1200mm with standard or double length gantry plate. PLEASE NOTE!!! Length given in drop down menu is the length of aluminium profile used, not a length of whole actuator. Stroke(movement) of standard size gantry plate is around 90mm less than length of aluminium profile used. For example – 250mm C-beam actuator gantry plate travel distance is around 160mm WHAT’S IN THE BOX? Assembled C-Beam actuator: 1 x Nema 23 Stepper Motor 175oz Torque (1.28N.m) 4 x Mini V Wheel Kit(or 8 pieces with double length gantry plate) 2 x C-Beam End Mount Plate 1 x C-Beam Gantry Plate 78x78x6mm (or double length gantry plate 78x155x6mm) 1 x C-Beam Linear Rail 1 x 8mm Metric Acme Lead Screw 6x Nylon Insert Nuts – M5 thread(or 10x with double length gantry plate) 4 x Low Profile Screws M5 x 25mm (or 8x with double length gantry plate) 2 x Aluminium Spacers – 6mm( or 4 x with double length gantry plate) 1 x 6.35mm x 8mm Flexible Coupling 2 x Aluminium Spacers – 3mm 2 x Eccentric Spacer – 6mm ( or 4 x with double length gantry plate) 1 x Anti-backlash Nut Block 2 x Ball Bearing 688Z 8x16x5 2 x 8mm Shim 2 x 8mm Lock Collar 10 x M5 x 20mm Low Profile Screws 2 x M5 x 55mm Low Profile Screws Motor specification sheet
