CA-40120 Large C Track Linear Actuator35.00৳

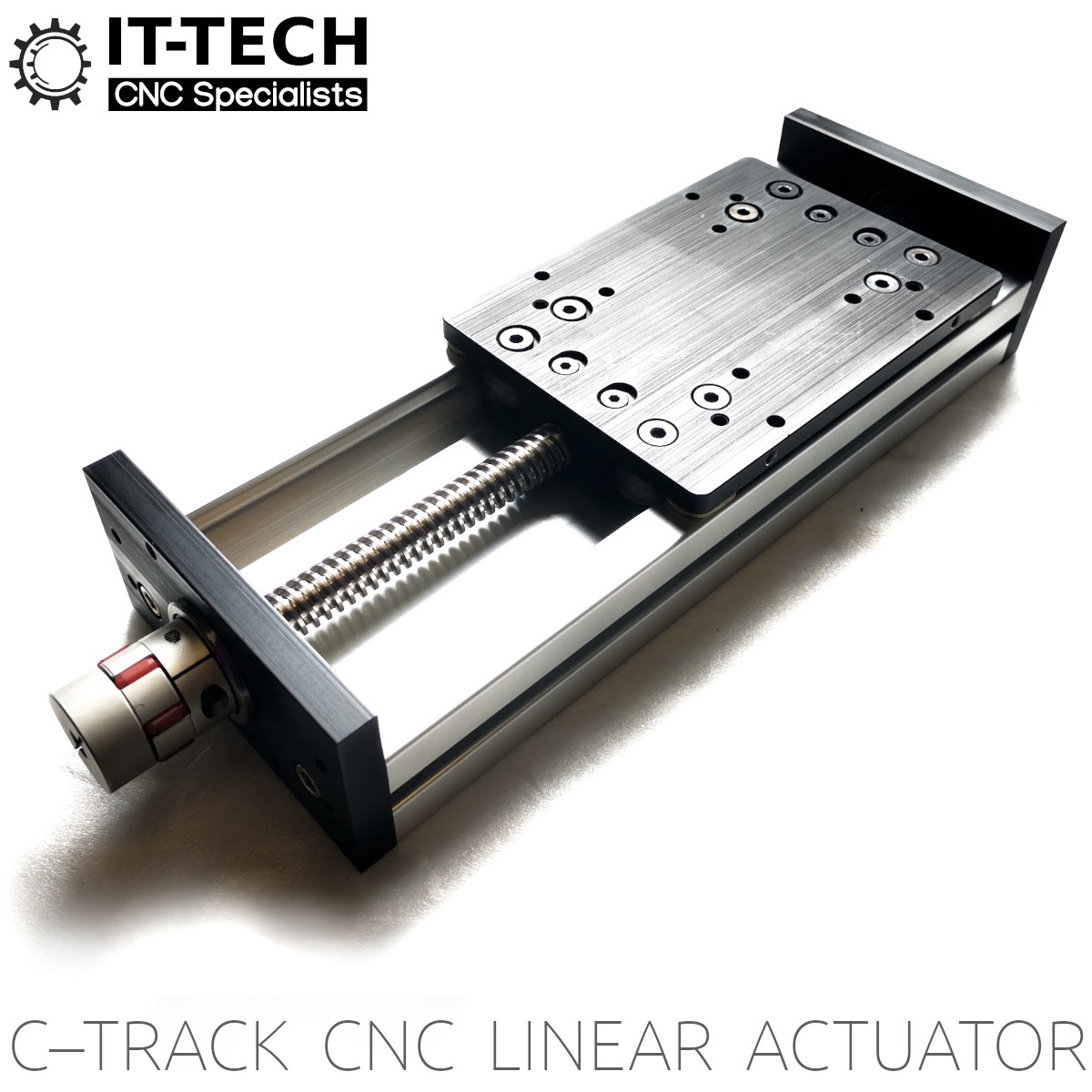

- Description Large C Track Linear Actuator For sale a high quality aluminium Large C Track Linear Actuator. This actuator type can be used to build larger CNC machines, large format 3D printers, plasma or laser cutting machines. This actuator is larger and much stiffer than most of C-Beam based actuators available on the UK market. Our C section extrusion used to build C-track actuators works similar to the OpenBuilds C-Beam actuators, but it’s bigger, wider and heavier(about twice of standard C-Beam weight). Additionally our gantry plate is thicker (8mm compared to 6mm original plates), it’s also larger (165x118mm compared to Xlarge 125x125mm OpenBuilds plate). Our gantry plate can accomodate 8 pieces of “W” Delrin roller wheels , mounted to the gantry plate by M6 bolts (OpenBuilds system uses M5 bolts to compare), which results with more rigidity and less deflection. One side of the gantry with 4 x “W” wheels contain eccentric spacers, which allow it to regulate the position of wheels and eliminate loose. Special thin regulating 11mm wrench included. Additionally there are four iGus selflubricating sliding pads between gantry plate and aluminium rail for better stability and to prevent gantry plate deflection when moving There is also available a ‘closed up’ double gantry actuator system which provides extra protection to the actuator’s leadscrew and track channels , which is very important in the milling machinery to prevent milling chips and dust from penetrating roller tracks of the actuator. CA-40120 linear actuator is completely our design, we designed all parts and hired a factory to manufacture them for us. Assembled in the UK. Following lengths available: 300mm , 500mm, 750mm, 1000mm,1200mm, 1500mm. On request we can make a longer than 1500mm actuator, if such a long actuator is needed please contact us. This CNC Actuator contains a TR16x8 leadscrew with Delrin anti-backlash nut system. Leadscrew is ended with flexible coupler which can accomodate nema 23 stepper motor with 8mm shaft. Please choose the desired length and open/closed actuator type from a drop down menu, and add them to the cart. PLEASE NOTE! Length given in a drop down menu is just a length of linear extrusion rail used, actual gantry movement will be 165mm less than”Length” given. Suitable suitable stepper motor can be found in our store: WHAT’S IN THE BOX? 1 x C Track Linear Actuator ( without stepper motor) Part list: C Track 40120 linear rail( please choose length of the rail from a drop down menu) End machined TR16x8 lead screw(4mm pitch, 8mm lead) 2 pieces of end plates 60x120x12mm with 4pieces of M8 bolts 118x165mm gantry plate with 8 (or 16) pieces of Delrin W wheels Anti-backlash Delrin nuts system for TR16x8 leadscrew with mounting M5 bolts and Nyloc nuts 4 pieces of eccentric spacers 4(or 12) pieces of M6-3mm spacers 8 pieces of M6 flat head black bolts with Nyloc nuts for V wheels M12x1.0mm locking nut 2 pieces of flange 35x11mm bearings 30x35mm plum spider jaw coupler with 8mm shaft hole suitable for nema 23 stepper motor 4x 40mm aluminium spacers and 4 x 55mm long M5 bolts for stepper motor mount Gantry adjusting 11mm thin wrench
