V-Slot Belt Driven Linear Actuator35.00৳

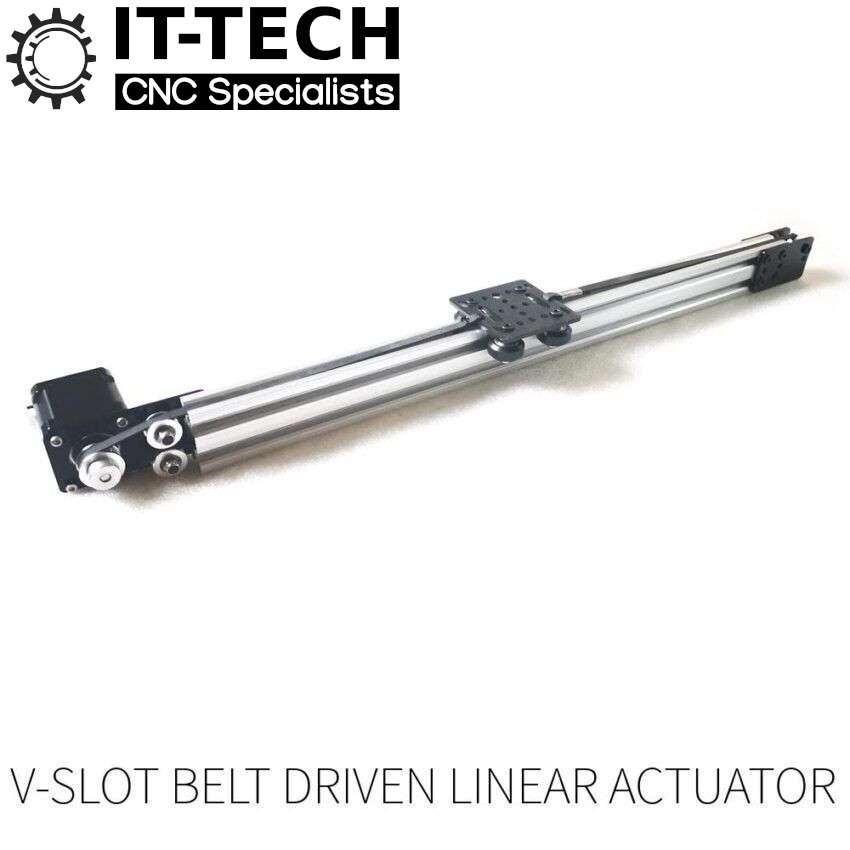

- Description V-Slot Belt Driven Linear Actuator For sale: a belt-driven V-slot linear X/Y/Z axis actuator kit suitable for building Laser or 3D Printer machines. We offer this actuator in four different lengths: 400mm, 500mm, 750mm, or 1000mm, all of which include Nema 17 0.56N.m. stepper motors. Please choose between the Mini V gantry plate (50mm) and the Standard V gantry plate (65mm). The length of the stepper motor wires is approximately 80cm, ending with a 4-pin plug. PLEASE NOTE: The length of the actuator provided in the dropdown menu refers to the length of the aluminum extrusion profile used, not the slide travel distance. The slide travel distance of the gantry plate is approximately 120mm less than the length of the extruded profile used. For example, in a 400mm actuator, the travel distance is about 280mm. The total length of the actuator is approximately 85mm longer than the length of the aluminum profile listed in the dropdown menu. For example, a “400mm” actuator has a total length of 485mm. WHAT’S IN THE BOX? 1 piece V-Slot Belt Driven Linear Actuator (fully assembled) 80cm connector cable
