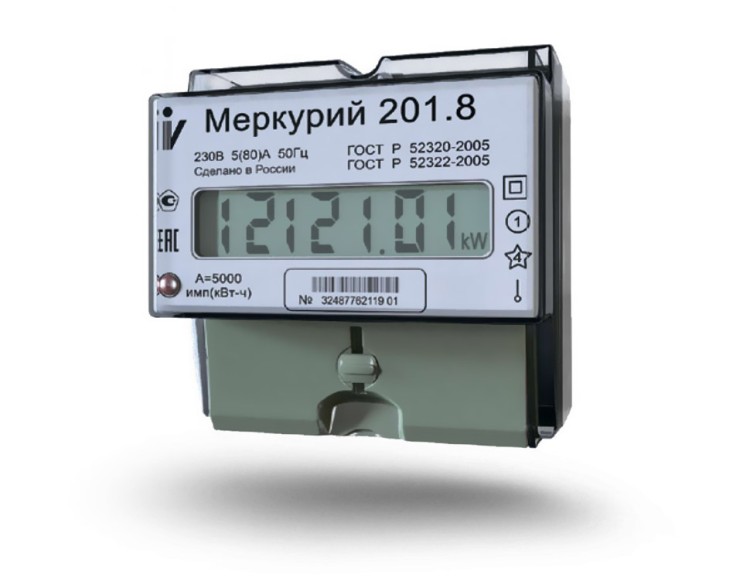

Electricity meter 1-phase Mercury-201.8 | 220V 5-80A

DescriptionThe meters are designed for commercial metering of active electricity in single-phase alternating current circuits and operate both independently and as part of the AICC. Measurement of electricity by digital method. Absence of magnetically sensitive elements in measuring circuits and power supply system. A counting device with an anti-reverse mechanism and protection against magnetic fields.Electricity metering "modulo", an increase in readings for any phasing of connected circuits.Minimum dimensions in its class, mounting on a DIN rail.An all-in-one structure that is destroyed when an autopsy is attempted. technical specifications:Active /full power consumption by the meter voltage circuit at rated voltage: 2 W /10 V*A.The total power consumed by each current circuit, no more than: 0.1 V*A.Verification interval: 16 years.Warranty period: 3 years.Time to failure, at least: 220,000 hours.Operating temperature range: -45 to 70 °C.Weight, not more than: 0.25 kg.Dimensions (L-W-H): 65 x 90 x 76 mm. METROLOGICAL CHARACTERISTICS:Accuracy class of counters: 1.Rated voltage: 230V.Rated /maximum current, A: 5/80.Maximum current for 10 ms: 30*I max.Sensitivity when measuring active energy, A: 0.02.more hide
