$56.68
$103.72

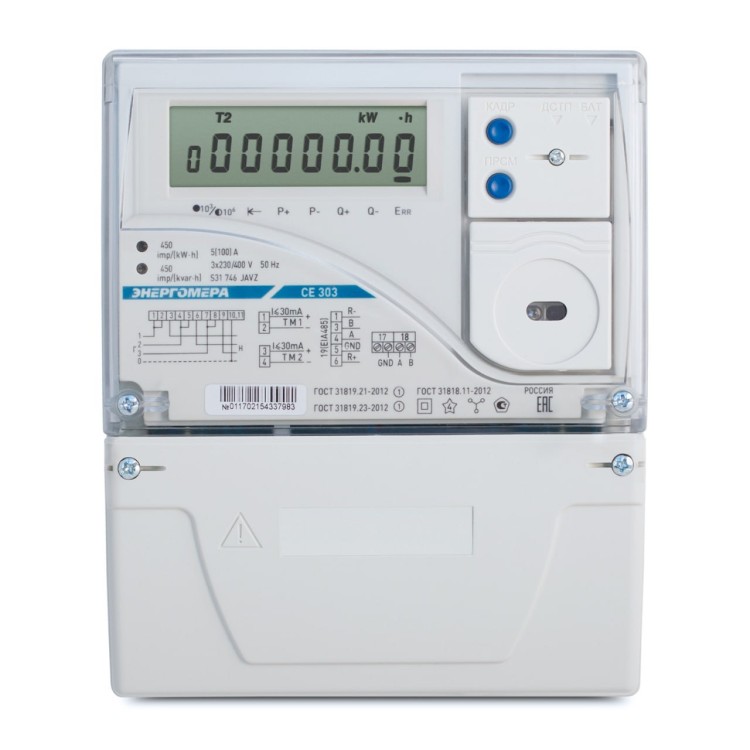

DescriptionElectronic counters CE 303S31 746 JAVZ All payment methods: uzkart (online), cash, transfer. The warranty is 3 years. THE SERVICES ARE LICENSED. THE PRODUCT IS CERTIFIED. The meter is a three-phase, universal transformer or direct connection, designed to measure active and reactive electrical energy, power, voltage frequency, active and reactive power coefficients, angles between phase voltage vectors and phase current and voltage vectors, RMS voltage, current strength. The meter has the ability to organize multi-tariff electricity metering with the transmission of accumulated information via an optoport, RS485 interface, radio, PLC or GSM/GPRS modems. Technical specifications Accuracy class for measuring active/reactive energy 1/1Number of tariffs 4Measuring network frequency, Hz 50 ± 2.5Rated voltage, V 3x230/400Base (maximum) current, A 5 (100)Starting current (sensitivity):- for direct-on electric meters, mA 20 - for transformer switch-on electric meters, mA 5Parallel circuit power consumption, max., V*A (W) 9.0 (0.8)Total power consumption of the serial circuit, not more than 0.1 V*AThe depth of storage of daily energy accumulated at the rates of 45 daysNumber of load profiles up to 4 (P , P-, Q , Q-)Averaging time of load profiles, min 1; 2; 3; 4; 5; 6; 10; 12; 15; 20; 30; 60Storage depth of each profile, days 148 days (with an averaging time of 60 minutes)Operating temperature range, ° C from minus 40 to 60Operating phase voltage range (0.75 ... 1.15) UOverall dimensions, not more than, mm 73 x 177 x 212Weight, not more than, kg 3 The counter provides • Storage of data on hourly volumes of consumed energy for the last 148 days.• Time interval for averaging load profiles: 1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, 60 minutes.• The duration of information storage during power outage is at least 10 years.• Fixing the last 20 time adjustments, changing the time settings of tariff zones and reprogramming the metrological characteristics of the meter.• Fixing the last 100 drops and exits beyond the permissible values of phase voltages.• Data display on the LCD display with a preset frequency(T=5-255 s) or scrolling using the controls (buttons) on the front panel.• Load management using an external switching device.• Signaling deviations from the limits on power and consumption, fixing the maximum power value for each tariff during the month (averaging interval - 30 minutes) and monitoring the excess limit for issuing a command by the counter to trigger an external alarm relay.• Protection from external influences: o if there is a constant component in the network; o when exposed to an alternating magnetic field; o when exposed to a constant magnetic field of 200 mT; o when changing the direction of the current in phases (input-output of the meter).• Providing power from both phase voltage (presence of 1 phase) and linear (zero break).• Data memory and program memory are protected from unauthorized changes using buttons or via the interface (two passwords for two access levels, hardware permission (button or other device), an electronic seal with a record in the event log).Functionality The counter provides accounting and display output: • the amount of active electricity consumed by the cumulative total in total and separately at 4 tariffs at the end of the month and for the previous 12 months;• the amount of active electricity consumed by the cumulative total in total and separately at 4 tariffs at the end of the day for 45 days;• graphs of active capacities (consumption) averaged over a given time interval of 60 minutes for at least 148 days;• the maximum value of active power, averaged over a 30-minute interval, for the current and 12 past months separately at four tariffs. The counter measures and shows: •more hide
