Sensor for measuring low or low pressure | TurboFlow

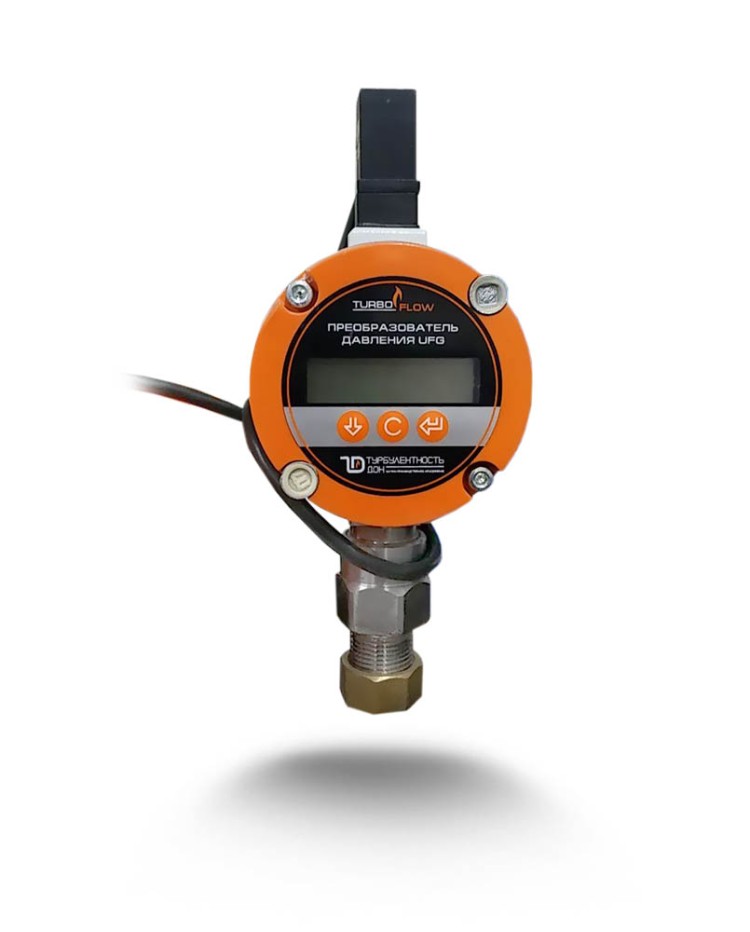

DescriptionTurbo Flow PS overpressure sensors are designed for continuous measurement and monitoring of pressure limits in pipelines and tanks with aggressive liquids, gases and powdered bulk products. purpose: Turbo Flow PS overpressure sensors are designed to measure overpressure and transmit information to an automatic process control system (APCS) via unified output signals or wireless communication channels. SCOPE OF APPLICATION: Systems of control, regulation and management of technological processes, including systems of commercial accounting of energy resources. FEATURES: Visual control of the current value of the measured pressure by the LCD indicator; Multifunctional indicator (digital parameter value, units of measurement, temperatures, setpoint response levels, tuning parameters); Operational installation of "zero"; System selection and adjustment of measurement units (Pa, kPa, MPa, kgf/cm2, kgf/m2, mA); Setting the averaging time of the output signal (damping); Setting to the "offset" measurement limit; Correction of measurement errors using the built-in microprocessor and temperature sensor; Testing and control of sensor parameters at a distance using a computer; Protection of settings from unauthorized access; Transmission of information to the upper level using the ModBus RTU protocol via RS-485/RS-232 interfaces; Archiving, recording and storing information about pressure and temperature values. execution: By pressure: At low pressure (up to 1.6MPa); For high pressure (from 1.6 MPa to 40 MPa). Explosion protection: 0 Ex ia IIC T6. 1 Ex d IIC T4 Gb X. For more information about the product, please check with the seller by contacting him by phone 99871 200-18-00more hide
