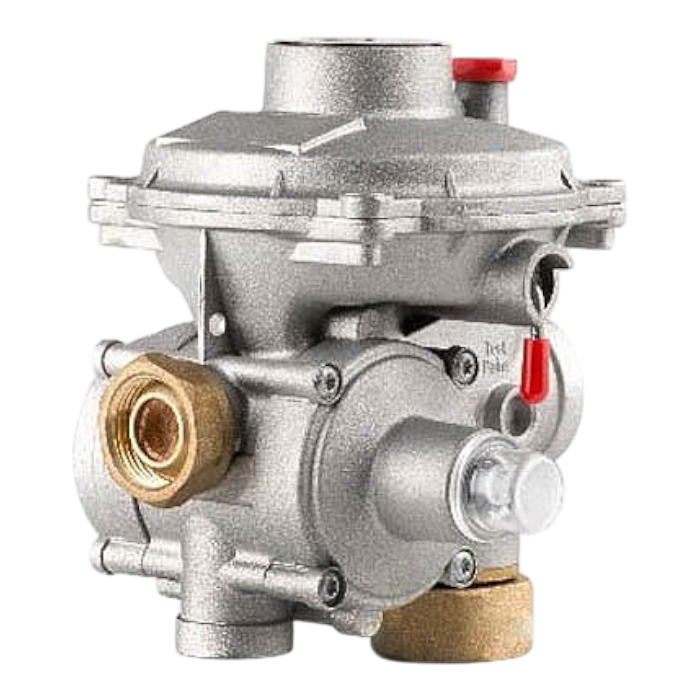

DescriptionGas pressure regulator TRG-MK 10 - Working medium natural gas working pressure 0.01 - 0.6 MPa. The maximum inlet pressure is 0.7 MPa. Output pressure 2.0 kPa (20 mbar) Exhaust gas pressure adjustment accuracy class - AS AS10=± 10% Sealing equipment accuracy group - AG AG10=± 10% AG20=± 20% Full closing pressure class - SG SG20=± 20% The operating value of the safety valve (SCV) is 3.5 kPa (35 mbar) The operating shut-off limits (SBK) are 5.0 (50 mbar) with an increase in the outlet pressure of kPa. 1.0 ≤ (10 ≤ mbar) when the outlet pressure decreases, the SBK response error is ± 10% of the nominal setpoint value. Connection dimensions: - inlet pipe DN20 G1 "BSP CF - outlet pipe DN32, DN50 G1 ", G2" BSP CF Overall dimensions, mm (not more than the specified value) length x width x height 132 × 135 × 149 Weight (not more than the specified value) 1.2 kg Service life 12 years. For more information about the product, please check with the seller by contacting him by phone 99871 200-18-00more hide
